COMPATIBILITY & FUNCTION:

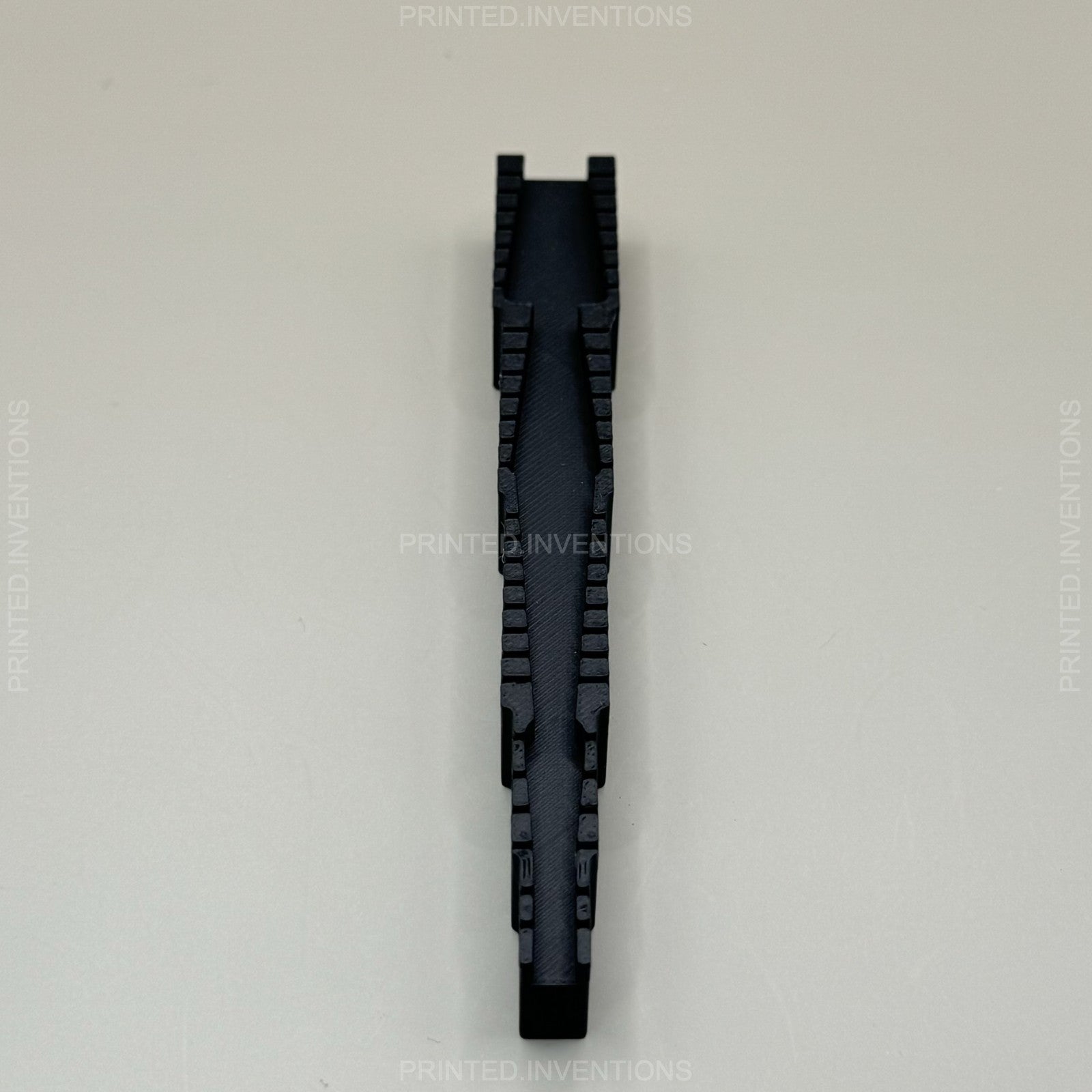

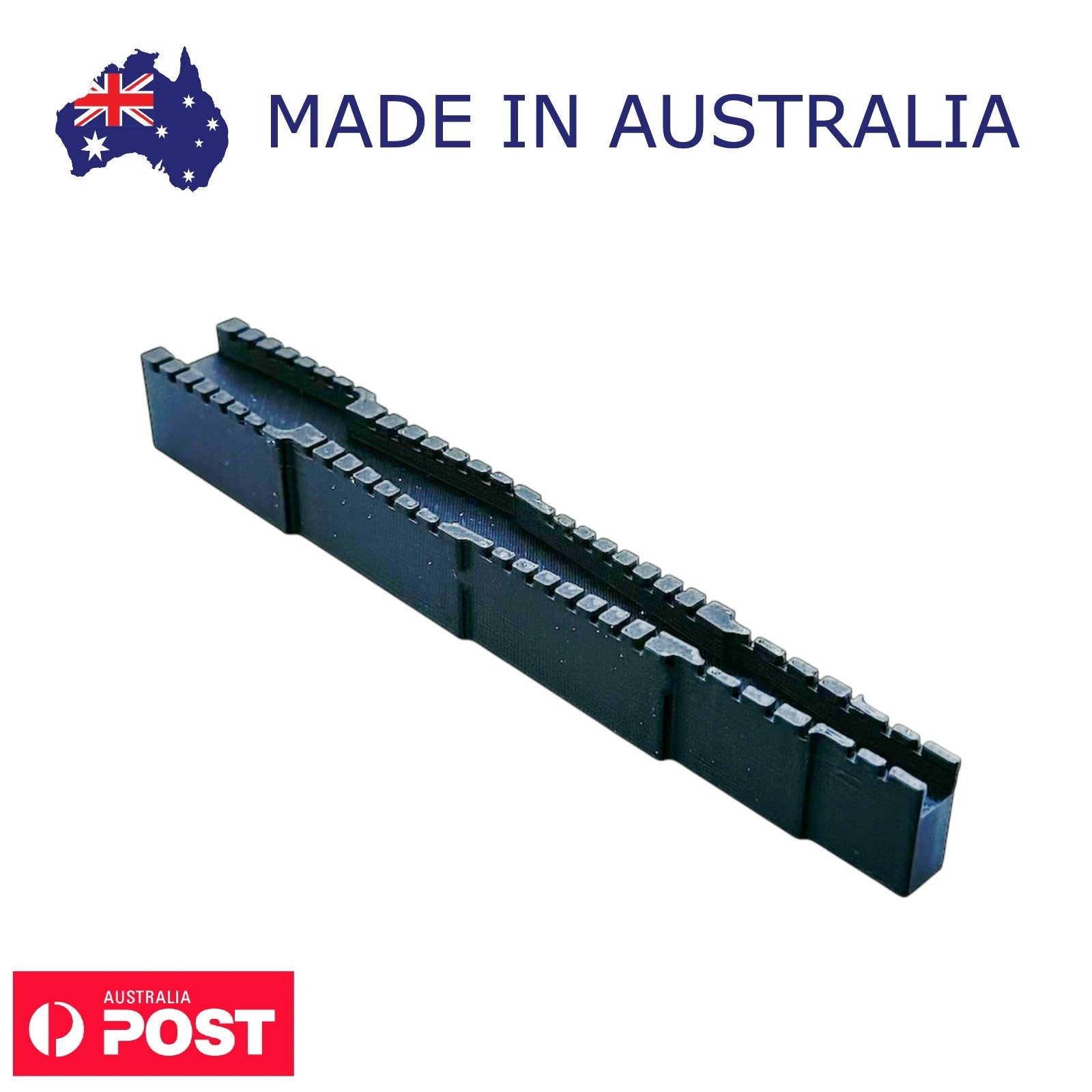

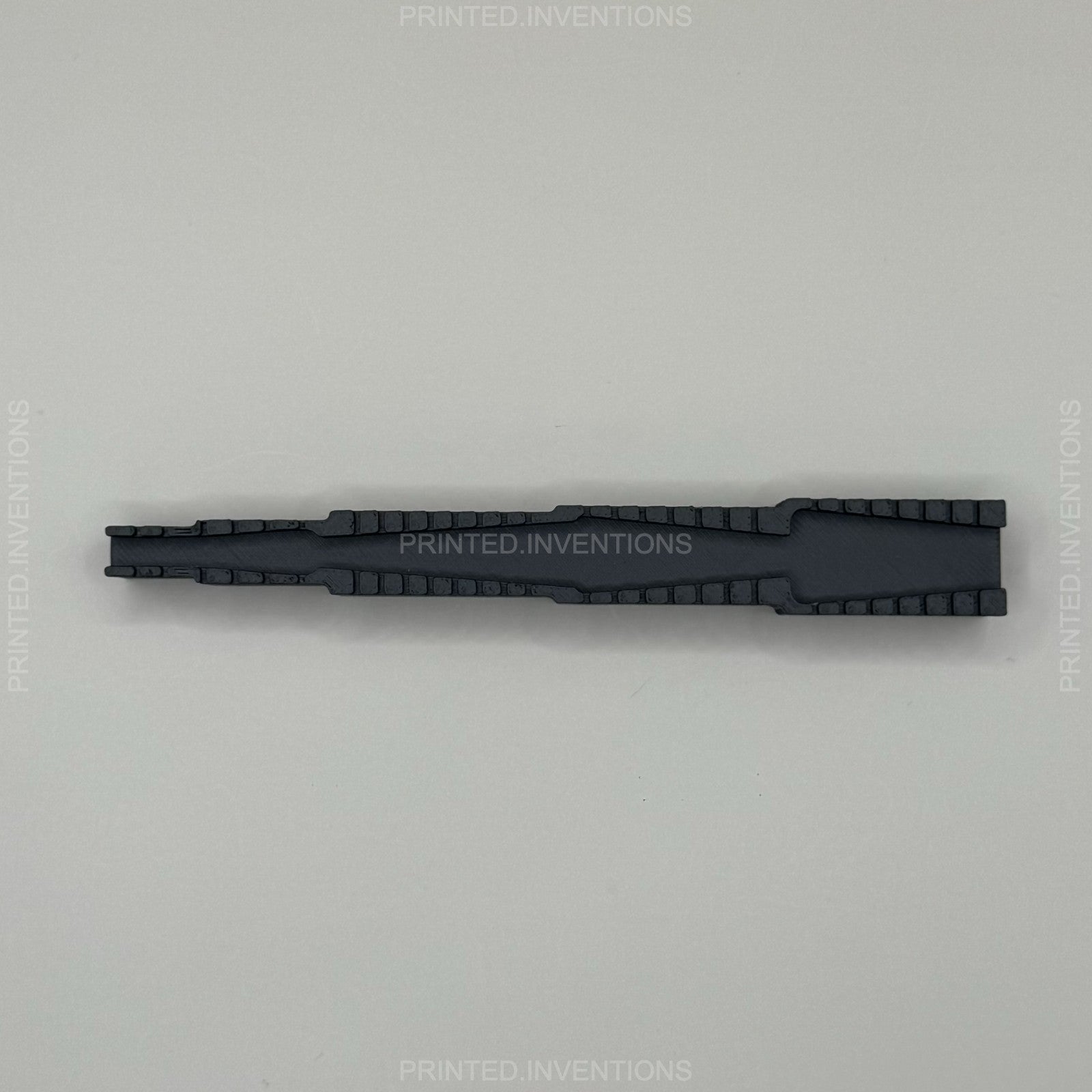

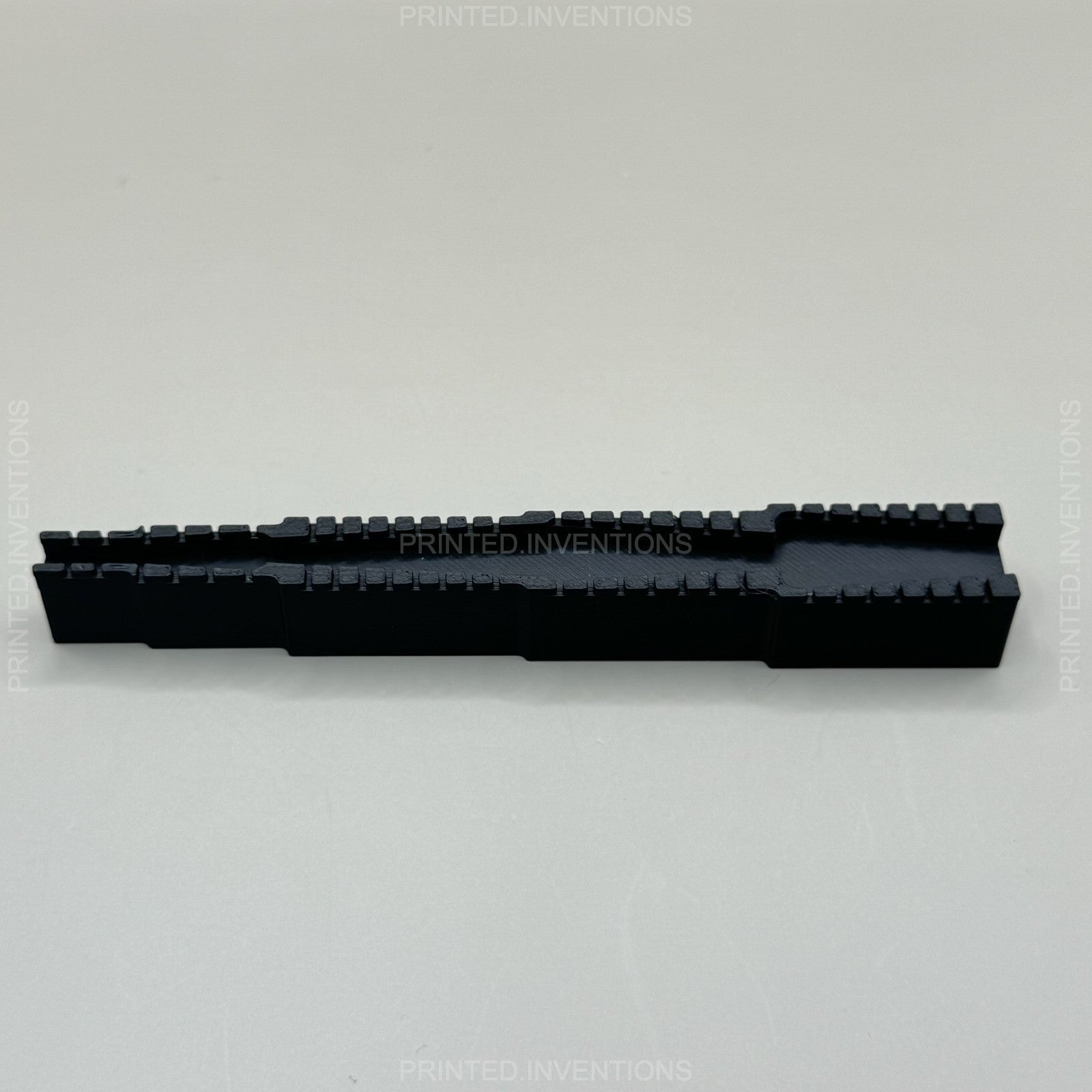

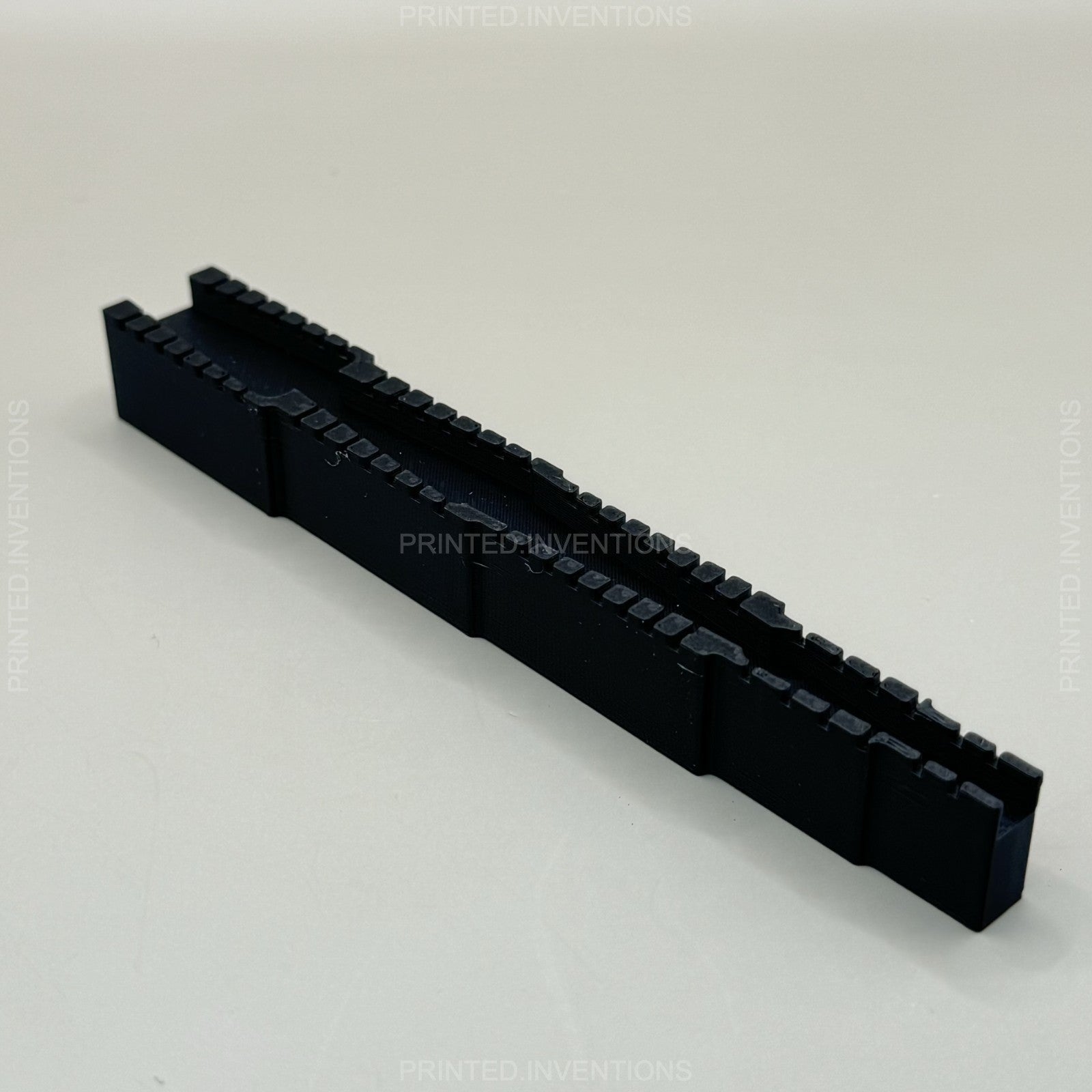

This gauge helper is designed for measuring and aligning through-hole electronic components such as resistors, diodes, capacitors, and more. It helps consistently bend and space leads to the correct pitch before inserting them into PCBs—ideal for DIY electronics, prototyping, and assembly work.
PRODUCT DETAILS:
• Condition: Brand new
• Material: Durable 3D-printed plastic
• Compatible Parts: Resistors, diodes, LEDs, and other leaded components
• Lead Spacing Options: Multiple pitch guides for accurate bends
• Colour: Black
BENEFITS:
• Consistent Bends: Ensures uniform lead spacing and cleaner assemblies
• Time Saver: Speeds up component prep during soldering or prototyping
• Handy Tool: Compact size fits neatly on your electronics workbench
• Great for Hobbyists: Perfect for DIY kits and circuit board repairs
SHIPPING & RETURNS:
• Fast dispatch
• Shipping charges apply (calculated at checkout)
• Returns accepted: Hassle-free returns if you're not satisfied
INSTALLATION INFO:
No installation required. Simply place the component onto the guide, bend the leads to the desired pitch, and you’re ready for PCB insertion.
SKU: PI0034
ATTRIBUTION: rreps - thingiverse:4606483
Brand: Unbranded
